Track Cover Supports 60 cm Double Straight Line Magnorail SO-14

As requested by many model makers, Magnorail is pleased to announce the arrival of the track cover support! This accessory hides the drive system while making it easier to lay track sheets on your layouts.

Discover the SO-14 – the perfect double-track straight line Track Cover Supports

The SO-14 is specially designed to cover two parallel tracks over 60 cm of straight line in the Magnorail system (i.e., 2 x UE-1 for 60 cm of double track), with opposite traffic directions. This kit allows you to create clean, straight double lanes and easily cover your track with a flat, wide, and uniform surface.

A perfect template for HO gauge spacing

Reproducing the correct width of a two-way road in HO scale isn’t always easy. It depends on vehicle width and the type of road you want to model (country road, main road, etc.). The SO-14 stands out thanks to its central part, which precisely defines the spacing between two lanes according to HO scale standards (1:87). This ensures smooth two-way traffic for your vehicles — whether trucks, cars, or buses — and seamless integration into your miniature scenery.

The central pieces include openings on both sides, allowing the fixing screws from the tracks to embed properly into the cover without distortion and maintain perfect alignment.

Clean, quick and customised installation

Made of 8 mm thick MDF wood, this cover track support is perfectly positioned at the correct height of the Magnorail track. It provides a uniform surface for easy installation of road surfaces, pavements or any other covering, without complex adjustments or risk of deformation.

A kit designed for straight double lanes

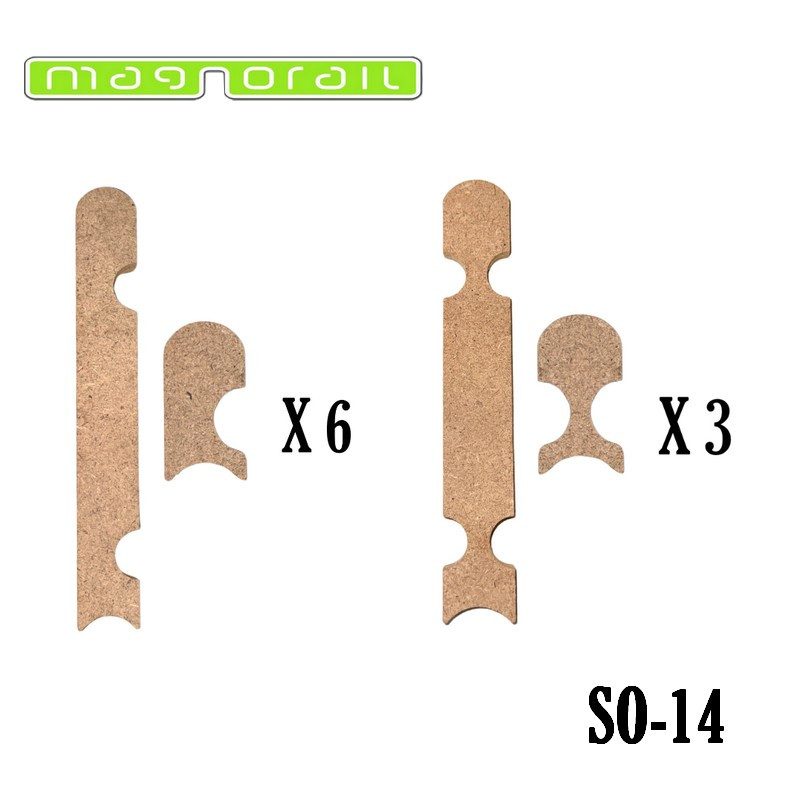

The SO-14 includes:

✅ 6 large straight elements (16 cm each)
✅ 6 small straight elements (4 cm each)
✅ 3 large central pieces (16 cm each)
✅ 3 small central pieces (4 cm each)

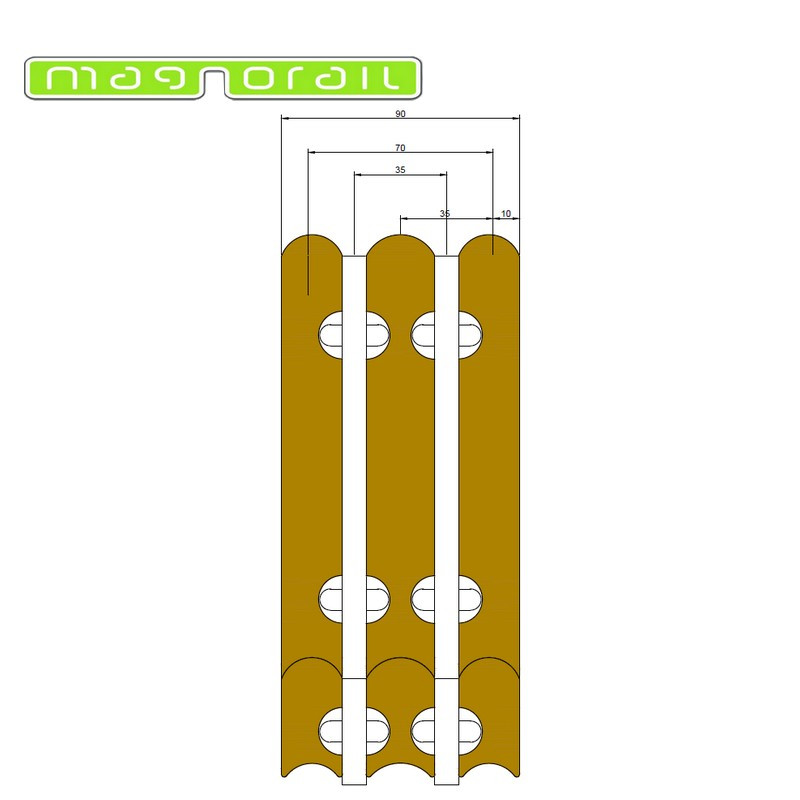

The straight elements are 2.3 cm wide, while the central pieces are 2.6 cm wide. The spacing between the two tracks is precisely set at 3.5 cm, matching the standard HO gauge. Once assembled, the complete Track Cover Support reaches a total width of 9 cm.

Modular setup, compatible with other Track Cover Supports

The SO-14 can be integrated into various configurations.

Example 1: To create around 95 cm of two-way track, you can use:

- 1 Expert Set (BF-2, BS-2, or BV-2)

- 2 x SO-14

- 1 x SO-9 to surround the motor module

Example 2: To create around 180 cm of two-way track, you can use:

- 2 Expert Sets (BF-2, BS-2, or BV-2)

- 2 x SO-14 (for the straight sections)

- 3 x SO-12 (for the curves)

- 2 x SO-9 to surround the motor modules

Magnorail Track Cover Supports Advantages

✅ Perfectly aligned to the track height

✅ Easy to glue with wood glue

✅ Flat surface, ready to receive double-sided adhesive

✅ Designed to precisely follow the path of your layout

✅ Generous width allows easy joining of cover sheets

✅ Consistent height avoids any irregularities at the joints

✅ Solid, easy-to-handle material

✅ Clean and neat design

✅ Ensures smooth vehicle movement once the surface is applied

A direct response to the needs of model makers

During presentations of the Magnorail animation system at exhibitions, these cover track supports were shown on several modules as a prototype for a series of ‘life-size’ tests. This resulted in regular requests from model makers who wanted a simple solution for integrating the Magnorail track into a realistic setting without complicated DIY work.
